Cold and Dark Start Tutorial

This page outlines the basic procedure to start up the FYCYC-C919X aircraft from a cold and dark state (no power) to fully operational engines. It is intended for pilots who are new to this aircraft.

Procedure

Below are the basic steps for starting the engines from a cold and dark state:

Step 1: Turn on MAIN BATT and APU BATT

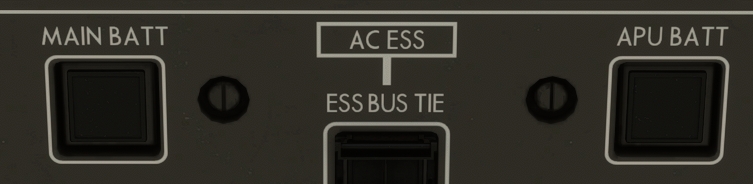

MAIN BATT and APU BATT switches

Step 2: Set IDU2 (left screen) to SYN page

  • Method 1: Press the L button on the left DCP → When the white light turns on, press SYN

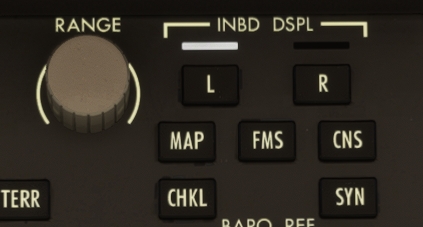

Left DCP

  • Method 2: Move the cursor over the left half of IDU2 → Right-click → Click SYN

IDU menu

Step 3: Start the APU

  • Press the APU MASTER SW switch
  • Wait until APU DOOR shows 100%
  • Press and hold APU START for 1 second
  • Wait for the AVAIL light on the APU START button to illuminate, indicating the APU has successfully started

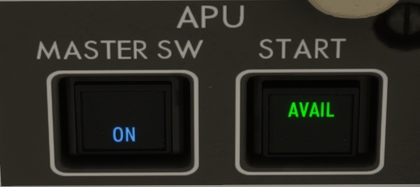

APU ready

Step 4: Switch to APU power and bleed

  • Press the APU GEN switch to switch electrical power to APU supply

APU power

  • Press the APU BLEED switch to switch pneumatic source to APU

APU bleed

Step 5: Turn on fuel pumps

  • Turn on all fuel pump switches

Fuel pumps

Step 6: Start engine(s) (left/right)

  • Set the fuel control switch to ON
  • Once the engine information appears on EICAS, move the START/IGNITION switch to START
  • Wait for the engine to start (the word RUN will briefly appear on EICAS)

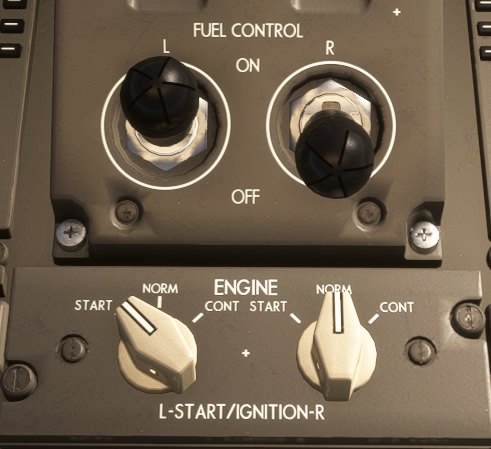

Fuel control switch Engine running

At this point, both engines are running. Set flaps as required, release brakes, and advance the throttle levers to TOGA to take off.

✈️ More advanced tutorials will be released in the future.
